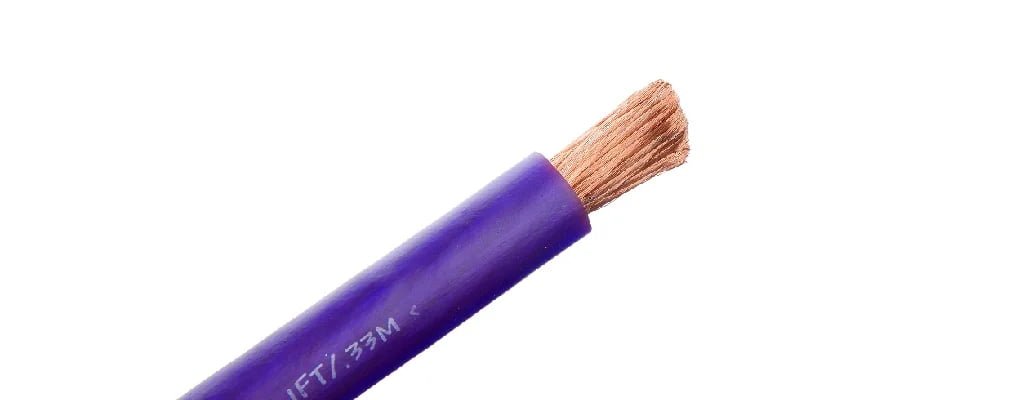

Current-carrying Capacity Comparison of Cables with Different AWG Specifications (18AWG/20AWG): Which One Should You Choose?

Have you ever wondered if a thinner cable could save you money without compromising your project? Many purchasing managers face this dilemma when choosing between 18AWG and 20AWG cables. The wrong choice can lead to overheating, equipment failure, and safety hazards that cost far more than any initial savings.

18AWG cables can safely carry up to 14 Amps at 30ºC, while 20AWG cables have a lower capacity. This difference directly impacts your electrical system's safety, stability, and longevity. Choosing the right specification means matching the cable's current-carrying capacity to your actual load requirements, not just looking at the price tag.

I learned this lesson the hard way when a customer in the industrial automation sector contacted us for control panel wiring. They initially wanted 20AWG cables to cut costs. What happened next changed how both of us think about cable selection.

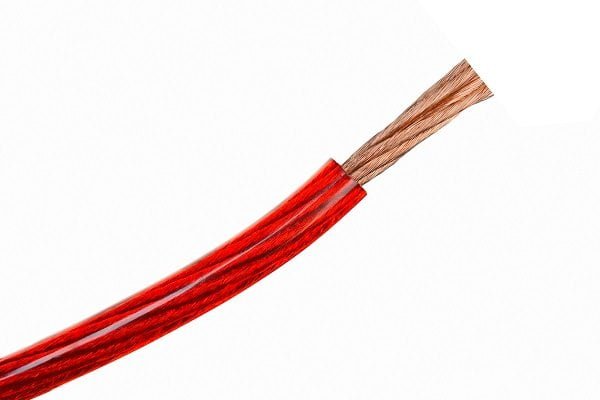

What Is the Actual Current-carrying Capacity Difference Between 18AWG and 20AWG Cables?

The numbers tell a clear story. When you compare 18AWG and 20AWG cables side by side, the difference in their ability to handle electrical current becomes obvious. This is not just about thickness. It is about safety and performance.

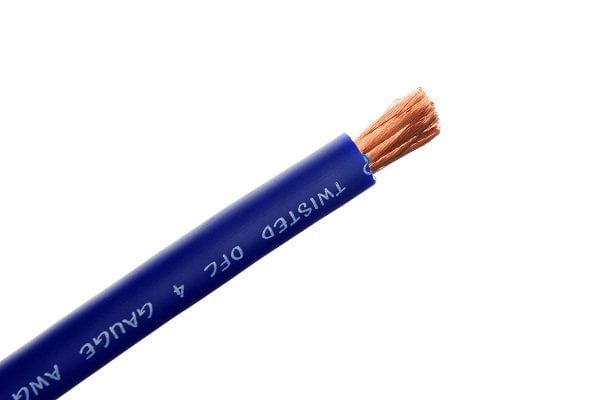

18AWG cables have a conductor cross-section of approximately 0.82 mm² and can safely carry up to 14 Amps at 30ºC ambient temperature. 20AWG cables have a smaller cross-section of about 0.52 mm² and typically handle around 11 Amps under the same conditions.

The difference goes beyond just the numbers on a spec sheet. The larger conductor in 18AWG cables means lower electrical resistance. Lower resistance means less heat generation when current flows through the wire. Less heat means your equipment runs cooler and lasts longer.

I saw this principle in action when our automation customer tested their 20AWG samples. Their equipment drew a continuous 12 Amps. The 20AWG cables could not handle this load safely. The cables started heating up during testing. The customer called me immediately with concerns about safety hazards.

We sent them 18AWG samples the next day. The difference was dramatic. The same 12-Amp load ran through the 18AWG cables without any overheating. The equipment operated at normal temperatures. The customer's testing team confirmed stable performance over extended periods.

Here is a comparison table that shows the key specifications:

The resistance difference is particularly important. 20AWG cables have about 58% more resistance than 18AWG cables over the same length. This extra resistance converts electrical energy into heat. That heat has to go somewhere. In a closed control panel, it can build up quickly.

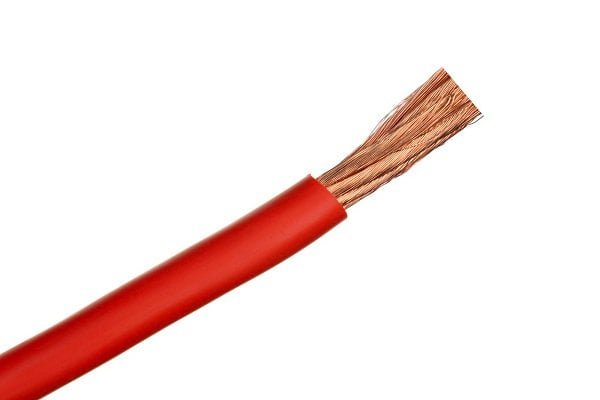

Why Does Cable Overheating Happen When the AWG Specification Is Too Small?

Overheating is not random. It follows basic physics. When you push too much current through a wire that is too thin, the wire fights back with resistance. That resistance creates heat. Too much heat damages insulation, connections, and eventually the wire itself.

Cable overheating occurs when the current flowing through the conductor exceeds its safe capacity, causing excessive resistance and heat buildup. Smaller AWG numbers mean larger conductors, while larger AWG numbers mean smaller conductors with higher resistance and lower current capacity.

The AWG system can seem backwards at first. A higher AWG number actually means a thinner wire. This confused our customer initially. They thought 20AWG sounded more substantial than 18AWG. The opposite is true. 18AWG is the thicker, more capable cable.

When current flows through any conductor, it encounters resistance. This resistance is measured in Ohms. The resistance creates heat according to a simple formula: Heat equals current squared times resistance. Double the resistance and you double the heat. Push more current through and the heat increases exponentially.

Our customer's 12-Amp load through 20AWG cable created a perfect storm. The 20AWG cable was rated for 11 Amps maximum. They were pushing 9% more current than the safe limit. The extra resistance of the smaller conductor amplified the problem. Heat built up faster than it could dissipate.

I have seen this pattern repeat across different industries. A furniture manufacturer once tried using 20AWG cables in their power tools. The tools would work for a few minutes, then slow down as the cables heated up. Switching to 18AWG solved the problem immediately.

The heat does not just appear and disappear. It accumulates. In the first few minutes, you might not notice anything wrong. After 30 minutes of continuous operation, the cable insulation starts to soften. After a few hours, the insulation can crack or melt. Once insulation fails, you risk short circuits, equipment damage, and fire hazards.

Temperature ratings matter too. Most cables are rated at 30ºC ambient temperature. If your installation environment is hotter, the safe current capacity drops. A control panel in a factory might reach 40ºC or 50ºC. At these temperatures, even cables operating within their rated capacity can overheat if you do not account for the temperature derating.

How Do You Calculate the Right AWG Size for Your Specific Application?

Choosing the right cable size requires more than guessing. You need to know your actual current requirements, understand your operating environment, and apply proper safety margins. I walk customers through this process regularly.

Calculate the right AWG size by determining your maximum current load, adding a 25% safety margin, considering the cable length and voltage drop, and checking the ambient temperature where the cable will operate. Always consult current-carrying capacity tables that match your specific installation conditions.

Start with your maximum current draw. Look at the equipment specifications. Find the peak current, not the average. Equipment often draws more current during startup or under load than during normal operation. Our automation customer's equipment specs showed 10 Amps average, but 12 Amps peak. They initially calculated based on average. That was their first mistake.

Add a safety margin. I recommend at least 25%. This accounts for variations in manufacturing, aging of the cable, and unexpected load increases. For the 12-Amp peak load, a 25% safety margin brings you to 15 Amps required capacity. 18AWG at 14 Amps falls slightly short with this margin. For critical applications, I would suggest 16AWG.

Cable length affects voltage drop. Longer cables have more resistance. More resistance means more voltage loss between the power source and the load. If your voltage drops too much, equipment may not function properly. The National Electrical Code recommends keeping voltage drop below 3% for branch circuits.

Here is a practical calculation table for voltage drop:

Temperature derating is critical. Standard capacity ratings assume 30ºC ambient temperature. For every 10ºC increase in ambient temperature, reduce the safe current capacity by about 10%. If your control panel runs at 50ºC, you need to derate the cable capacity by 20%.

I helped a photovoltaic mounting systems customer select cables for their solar panel connections. The panels operate in direct sunlight. Ambient temperatures can reach 60ºC or higher. We had to derate the cables significantly. What would normally be a 14-Amp capacity for 18AWG dropped to about 10 Amps in their application.

Bundle size matters too. If you run multiple cables together in a conduit or cable tray, they cannot dissipate heat as effectively. The National Electrical Code provides derating factors based on the number of current-carrying conductors in a bundle. Three conductors require about 80% of normal capacity. Seven to nine conductors drop to 70%.

Always check local electrical codes. Different countries and regions have different requirements. What is acceptable in one market may not meet standards in another. We provide EN10204 3.1 certificates for our European customers because their regulations demand it.

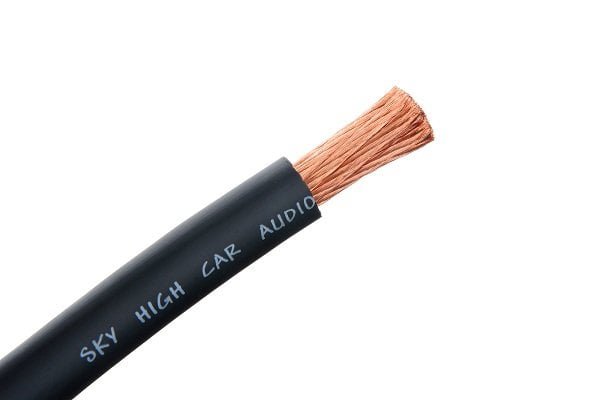

What Are the Long-term Cost Implications of Choosing the Wrong AWG Specification?

The initial price difference between 18AWG and 20AWG cables looks attractive on a purchase order. 20AWG costs less per foot. For a large project, the savings add up quickly. But those savings disappear fast when you factor in the real costs of using undersized cables.

Choosing undersized cables leads to higher long-term costs through equipment failures, safety incidents, production downtime, and expensive retrofits. The price difference between 18AWG and 20AWG cables is typically 15-20%, but the cost of a single equipment failure or safety incident can exceed the total cable budget for an entire project.

Our automation customer learned this lesson directly. They wanted to save money on their initial cable purchase. The cost difference between 18AWG and 20AWG for their project was about $800. They thought this was a smart way to reduce project costs.

Then the overheating started. They had to stop their testing program. Their engineers spent three days troubleshooting the problem. Engineering time at their company costs $150 per hour. Three days of investigation cost them $3,600 in labor alone. That is 4.5 times their intended cable savings.

They called us for help. We air-shipped 18AWG samples overnight. The expedited shipping cost $200. We absorbed that cost to maintain the relationship. But if they had paid for it, their "savings" would have shrunk further.

The testing delay pushed back their project timeline by one week. Their customer was waiting for the control panels to complete a production line installation. Every day of delay cost their customer $5,000 in lost production. While our customer was not directly liable for all of that, the relationship damage was real.

When they switched to 18AWG cables, they had to scrap the 20AWG cables they had already purchased. Those cables could not be returned because they were cut to custom lengths. Another $1,200 loss. The total cost of their "cost-saving" decision reached over $5,000. That is more than six times what they tried to save.

I have seen worse cases. A furniture manufacturer used undersized cables in their production equipment. The cables overheated and caused a small fire in one machine. Nobody was hurt, but the fire damaged the machine beyond repair. The machine cost $45,000 to replace. The insurance deductible was $10,000. The production line was down for two weeks during replacement and reconfiguration.

The fire marshal investigated. They found the undersized cables were the cause. The manufacturer's insurance rates increased at the next renewal. The long-term cost of that single cable choice was over $100,000 when you add up the machine replacement, deductible, lost production, and increased insurance premiums.

Maintenance costs increase with undersized cables too. Overheating degrades insulation faster. Connections loosen from thermal cycling. You need more frequent inspections and replacements. A home appliance manufacturer I work with tracks their maintenance costs carefully. When they switched from properly sized cables to smaller ones to save money, their annual maintenance costs increased by 40%. The cable savings were gone in less than six months.

Energy costs matter for long cable runs. Higher resistance means more power loss. That power turns into heat and gets wasted. For a single cable the difference might be small. But multiply it across hundreds or thousands of cables in a large facility and it adds up. One construction equipment manufacturer calculated they were wasting $2,000 per year in electricity costs because they used 20AWG instead of 18AWG in their assembly line.

How Can You Ensure Compliance with International Safety Standards When Selecting Cable Specifications?

Standards exist for good reasons. They represent decades of engineering experience and safety data. Following standards protects your workers, your equipment, and your business. Ignoring standards can lead to rejected shipments, failed inspections, and liability issues.

Ensure compliance by consulting relevant standards such as UL, CSA, IEC, and local electrical codes, requesting proper documentation including EN10204 3.1 certificates and test reports, and working with manufacturers who understand international requirements. Different markets have different standards, and your cable selection must meet the specific requirements of your target market.

The United States primarily uses UL standards and the National Electrical Code. UL 1007 covers single conductor cables like those used in appliances and control panels. UL 1015 covers automotive wire. Each standard specifies temperature ratings, voltage ratings, and testing requirements. When you see a UL listing on a cable, it means the cable has been tested and meets those requirements.

Canada uses CSA standards. CSA C22.2 covers electrical cables and cords. The requirements are similar to UL but not identical. If you sell equipment into Canada, you need CSA-approved cables. A UL listing alone is not sufficient.

Europe uses IEC standards and requires CE marking. IEC 60227 covers PVC-insulated cables. IEC 60245 covers rubber-insulated cables. European customers also often request EN10204 3.1 certificates. This certificate provides material traceability and test results. We provide these certificates routinely for our European customers.

Asian markets have their own standards. China uses GB standards. Japan uses JIS standards. Each country has specific requirements. If you export to multiple markets, you need to understand what each market requires. We maintain certifications for multiple standards because our customers sell globally.

The documentation requirements vary by standard and market. At minimum, you should request:

I worked with a photovoltaic mounting systems customer who needed cables for a project in Germany. They requested standard cables initially. I asked about their documentation requirements. They had not thought about it. I explained that European regulations require specific certifications and declarations. We provided EN10204 3.1 certificates, RoHS declarations, and REACH compliance documentation. Their customer accepted the shipment without issues. If we had sent standard cables without proper documentation, the shipment might have been rejected at customs.

Temperature ratings are standardized but applied differently. Most building wire in North America is rated for 60ºC, 75ºC, or 90ºC. The temperature rating tells you the maximum temperature the insulation can withstand continuously. Higher temperature ratings allow higher current capacity. But you must also consider the temperature rating of the termination points. If you use 90ºC wire but connect it to a device rated for 60ºC terminals, you must derate the cable to 60ºC capacity.

Flame ratings matter for safety. UL cables are tested for flame resistance. The most common ratings are VW-1 (vertical wire flame test) and FT1/FT2 (Canadian flame tests). These tests ensure the cable will not propagate fire. For plenum spaces (air handling areas in buildings), you need CMP-rated cables that produce minimal smoke and toxic fumes when burning.

Working with experienced manufacturers makes compliance easier. We have been producing cables and stamped parts for 12 years. We understand what different markets require. When a customer tells us their target market, we can recommend the right specifications and provide the necessary documentation. This saves our customers time and reduces the risk of compliance issues.

Conclusion

Selecting between 18AWG and 20AWG cables is not about finding the cheapest option. It is about matching cable capacity to your actual requirements. The right choice prevents overheating, ensures safety, and saves money in the long run. Always calculate your needs carefully, add proper safety margins, and work with experienced suppliers who understand international standards.
